| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 压力范围 | Measuring ranges | 0~0.8...1.0...1.6...3.0...10...20...40...50...60MPa | |||||||||
| 过载压力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 破坏压力 | Burst pressures | 500%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表压，绝压 | |||||||||
| 测量介质 | Measuring Media | 对不锈钢304和316L不腐蚀的气、液体 | |||||||||

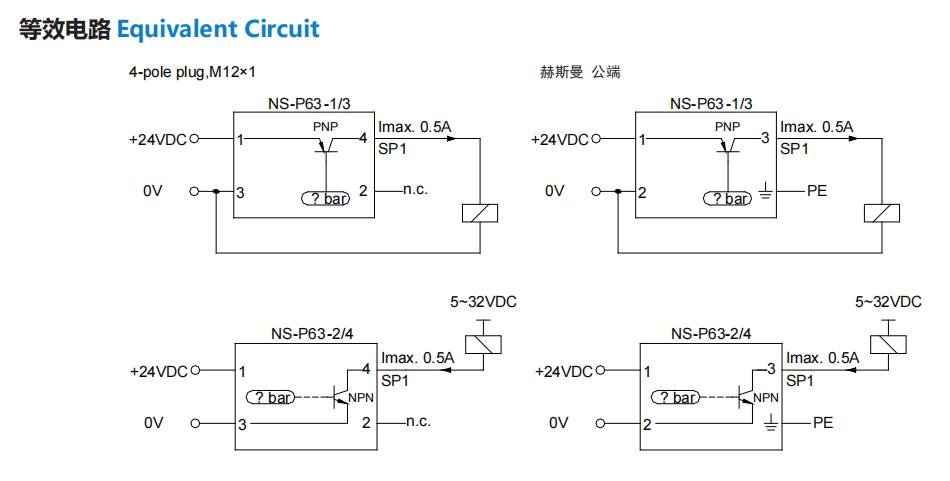

| 输出信号 | Output signal | PNP or NPN | |||||||||
| 工作电压 | Operating voltage | 24VDC(12~32VDC) | |||||||||
| 负载电流（电子开关） | Load current | 0.5A | |||||||||
| 综合精度 | Accuracy | ±0.5%F.S(典值) ±1.0%F.S(最大值) | |||||||||
| 长期稳定性 | Long-term drift | ≤±0.2%FS/ 年（典值） | |||||||||
| 工作温度范围 | Operating temperature range | -30~+85℃ | |||||||||
| 流体温度范围 | Fluid temperature range | -40~+120℃ | |||||||||
| 漏电流 | Leakage current | ≤1mA | |||||||||
| 绝缘阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐冲击性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干扰 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

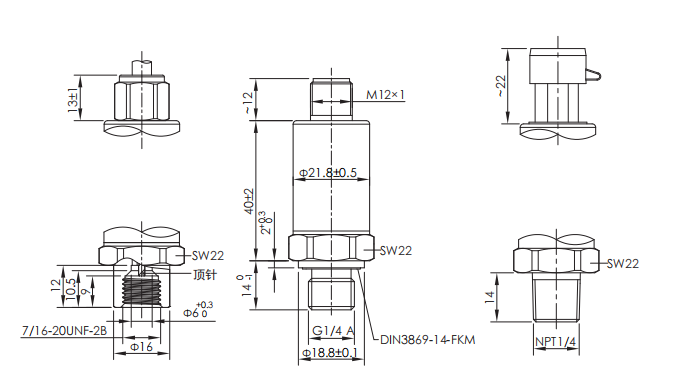

| 机械连接 | Mechanical connection | M5×0.8 | |||||||||
| 外壳材质 | Material | 304 | |||||||||

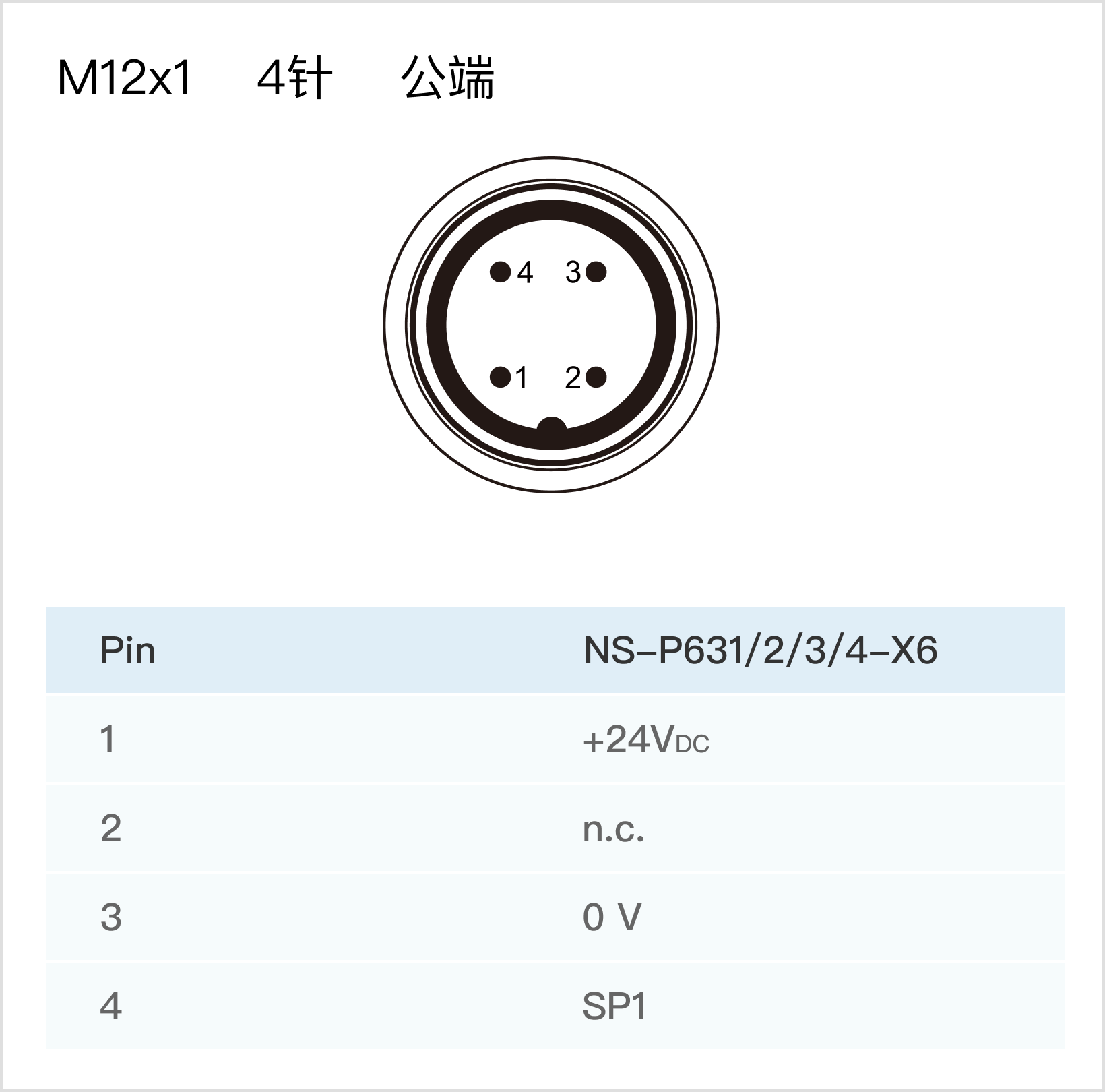

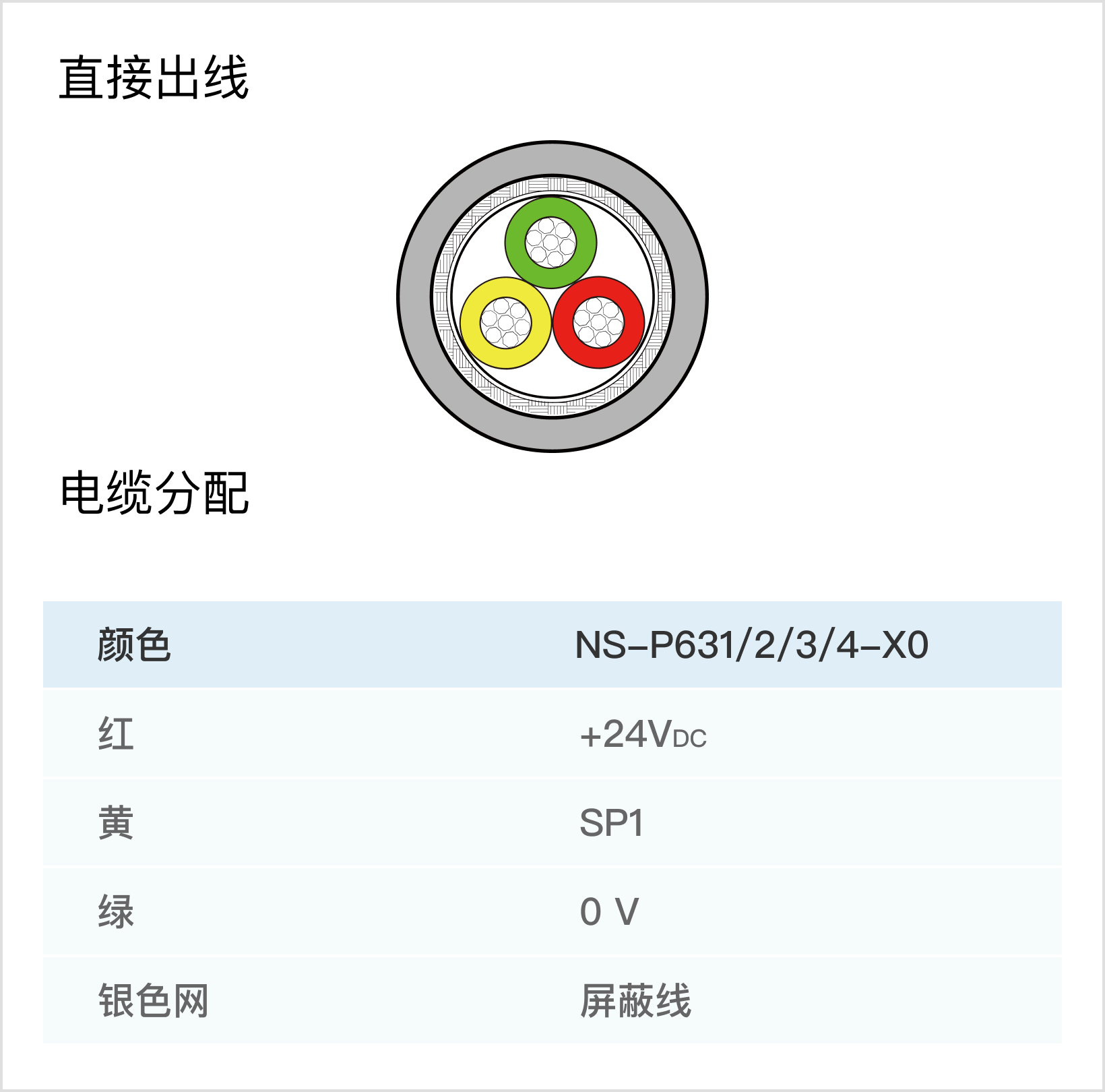

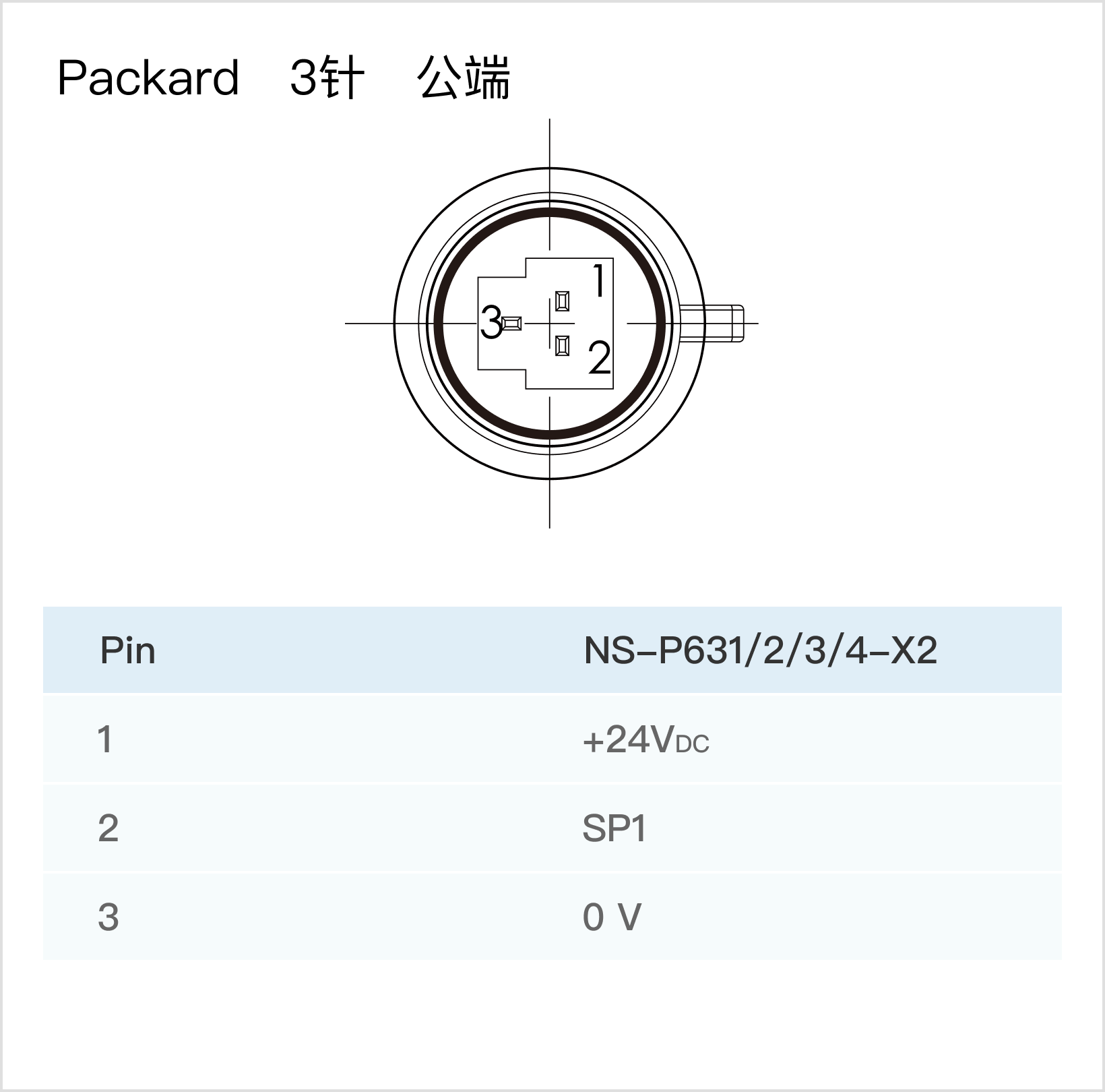

| 防护等级 | IP protection | IP65（Packard接插件) IP67(M12×1 4pin连接器或直出线） | |||||||||
