| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 压力范围 | Measuring ranges | 0~100kPa…1MPa…4MPa | |||||||||
| 过载压力 | Overload pressures | 200%F.S | |||||||||
| 破坏压力 | Burst pressures | 500%F.S | |||||||||
| 测量介质 | Measuring Media | 对不锈钢304和 316L不腐蚀的气、液体 | |||||||||
| 输出信号 | Output signal | 0.5~4.5V 0~5V 0~10V 4~20mA | |||||||||
| 工作电压 | Operating voltage | 24VDC(16~32VDC) | |||||||||
| 综合精度 | Accuracy | ±0.2%F.S/ 年（典值） | |||||||||
| 工作温度范围 | Operating temperature range | -30~+80℃ | |||||||||
| 消耗电流 | Current consumption | ≤10mA | |||||||||
| 绝缘阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐冲击性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干扰 | EMC proof | IEC 61000-6-2/3/4 | |||||||||
| 外壳材质 | Material | 不锈钢 | |||||||||

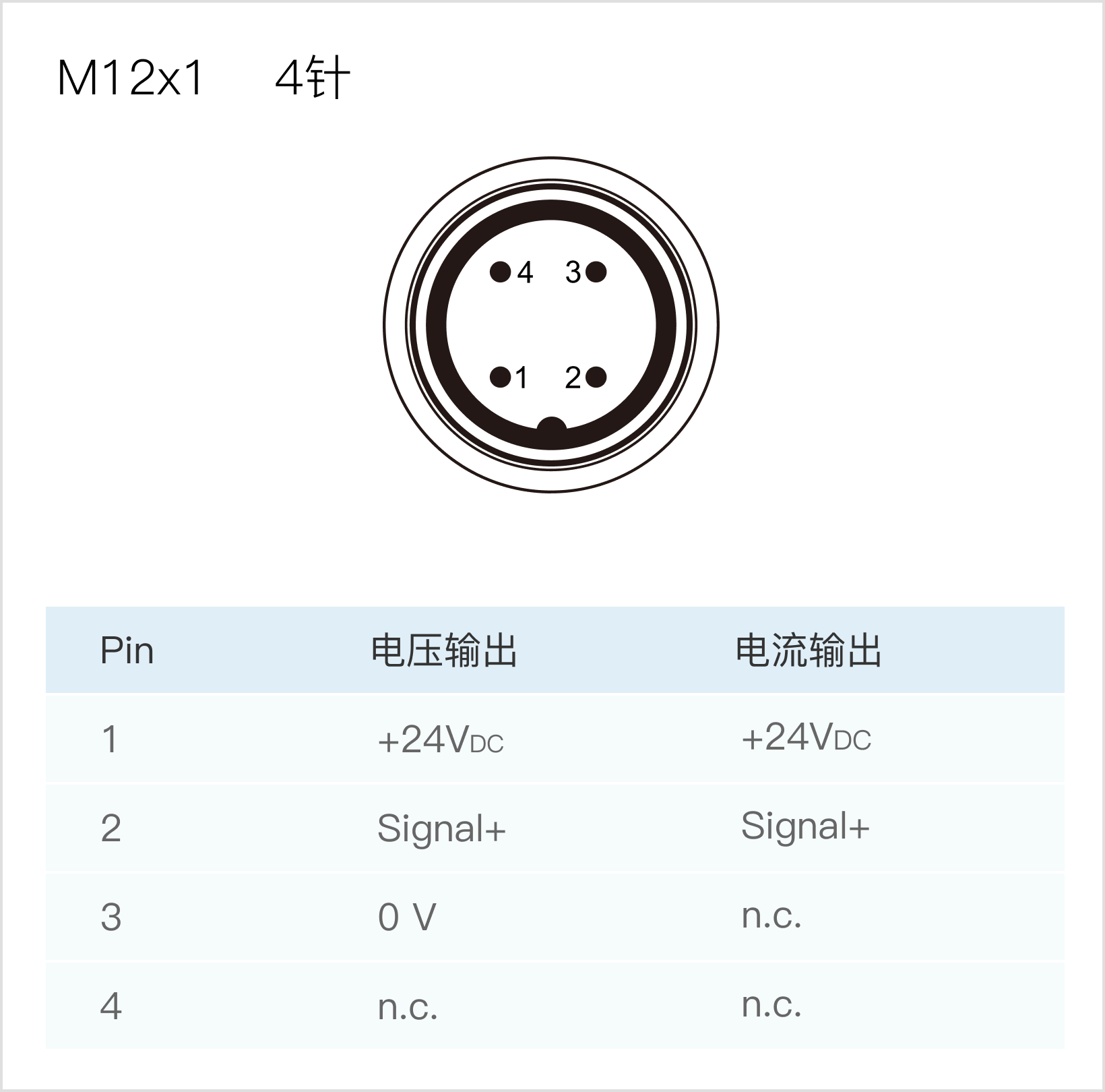

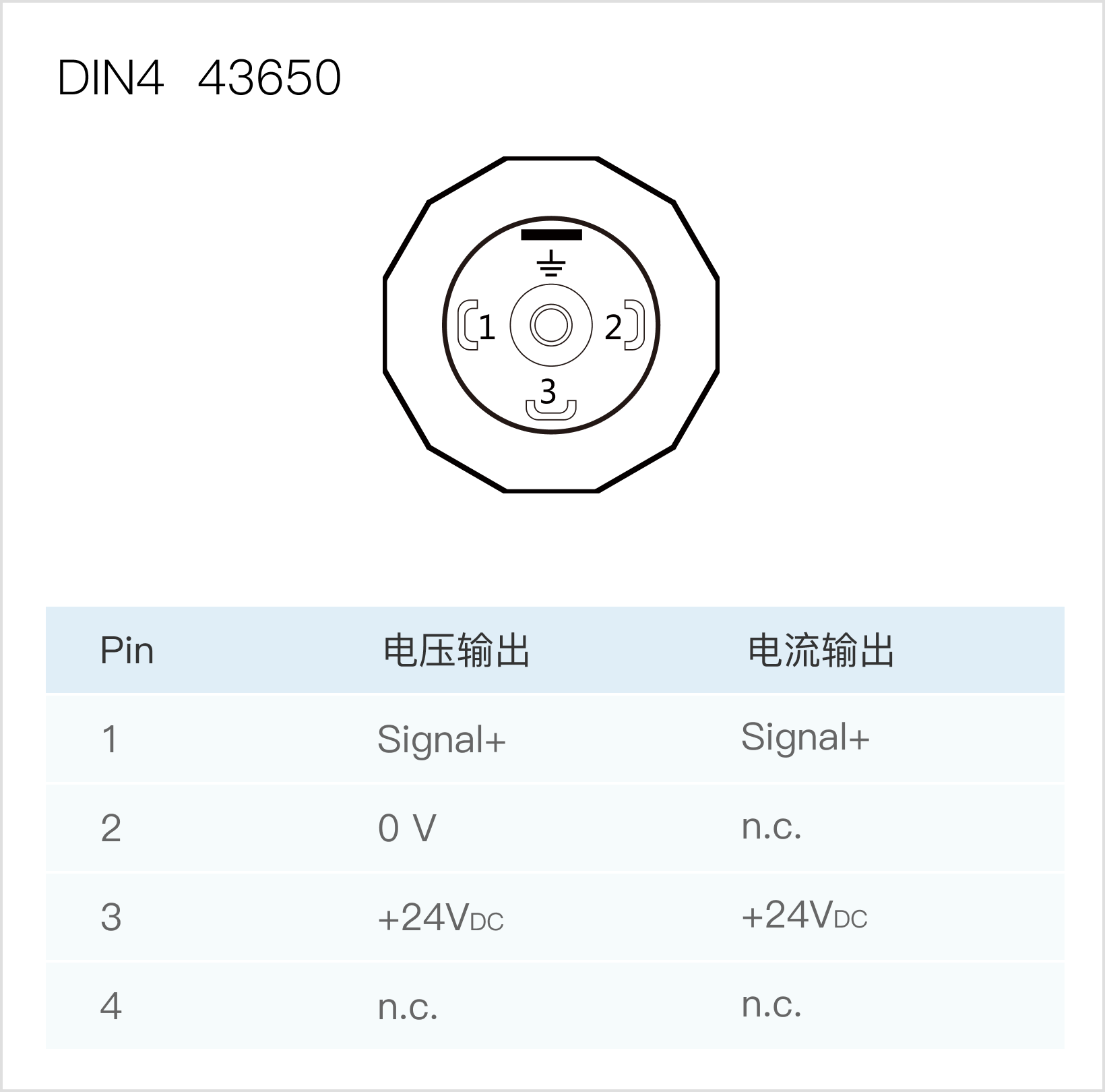

| 防护等级 | IP protection | IP67(M12×1)/IP65(DIN 43650) | |||||||||
