| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 压力范围 | Measuring ranges | 一路：0～0.8...1.0...1.6...3...10...40...50...60...100MPa 二路：0～0.8...1.0...1.6...3...10...40...50...60...100MPa | |||||||||
| 过载压力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 破坏压力 | Burst pressures | 500%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表压，绝压，密封表压 | |||||||||
| 测量介质 | Measuring Media | 对不锈钢304和 316L不腐蚀的气、液体 | |||||||||
| 输出信号 | Output signal | 4~20mA | |||||||||
| 工作电压 | Operating voltage | 24VDC(16~32VDc) | |||||||||
| 综合精度 | Accuracy | 二路精度一致性±0.5%F.S(23℃±2℃) | |||||||||
| 长期稳定性 | Long-term drift | ≤±0.2%F.S/ 年 (典值) | |||||||||
| 工作温度范围 | Operating temperature range | -40~+120℃ | |||||||||
| 绝缘阻抗 | Insulation resistance | ≥200MΩ/200VDC | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐冲击性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干扰 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

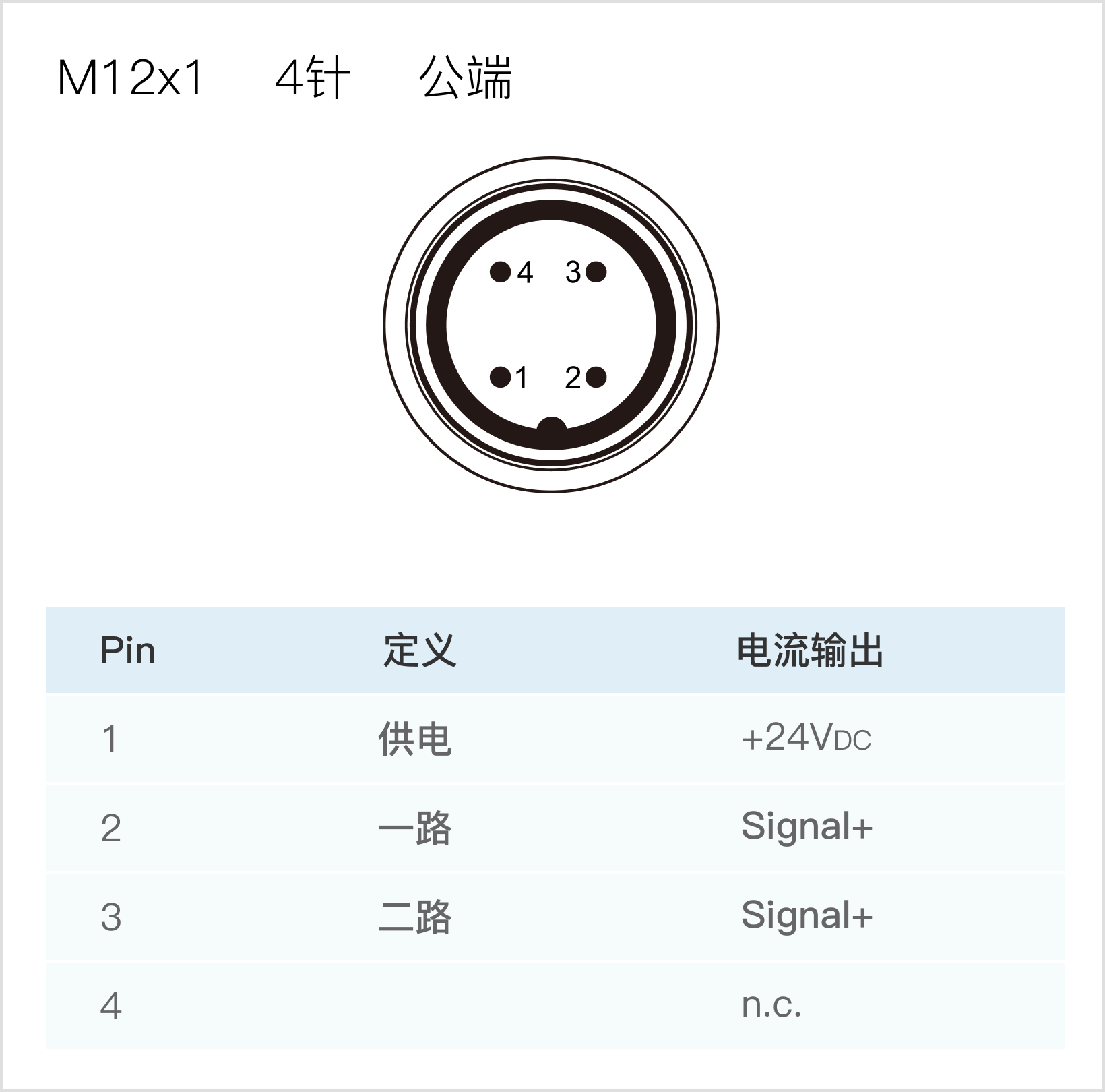

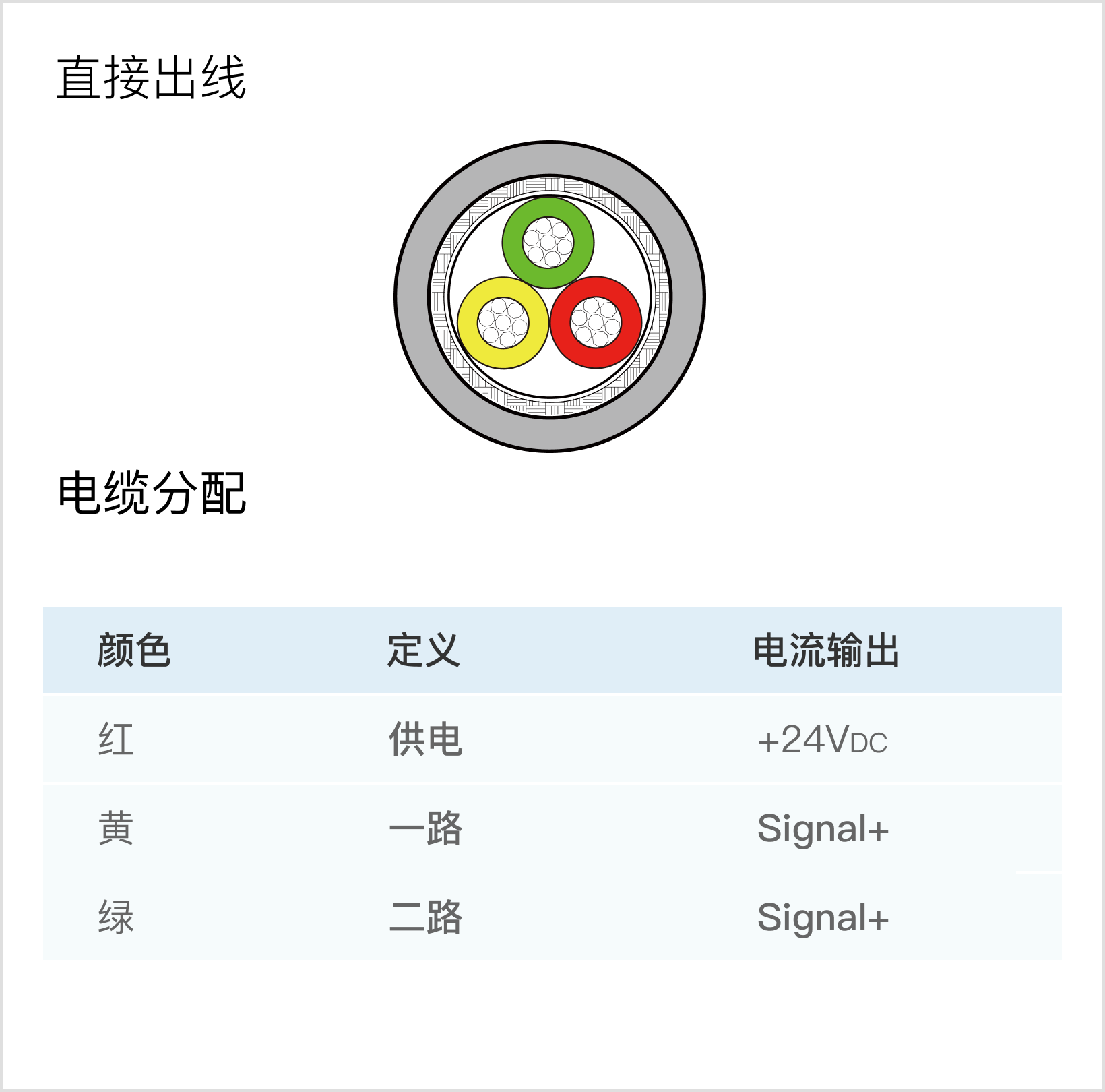

| 防护等级 | Ip protection | IP65(赫斯曼插)/IP67(M12×1或直出线) | |||||||||
