| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 压力范围 | Measuring ranges | 0.1...0.3...0.5...0.8...1...1.6...3.0...10...35MPa | |||||||||
| 过载压力 | Overload pressures | 200%F.S | |||||||||
| 破坏压力 | Burst pressures | 500%F.S | |||||||||
| 工作方式 | Operational Mode | 表压，绝压 | |||||||||
| 测量介质 | Measuring Media | 无腐蚀且不导电的气体 | |||||||||
| 输出信号 | Output signal | 100mV | |||||||||
| 工作电压 | Operating voltage | 5VDC | |||||||||
| 综合精度 | Accuracy | ±0.25%F.S（典值） | |||||||||
| 长期稳定性 | Long-term drift | ≤±0.1%FS/ 年 | |||||||||
| 工作温度范围 | Operating temperature range | -55~+120/175℃ | |||||||||
| 储存温度范围 | Storage temperature range | -40~+120℃ | |||||||||
| 消耗电流 | Current consumption | ≤10mA | |||||||||
| 绝缘阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐冲击性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干扰 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

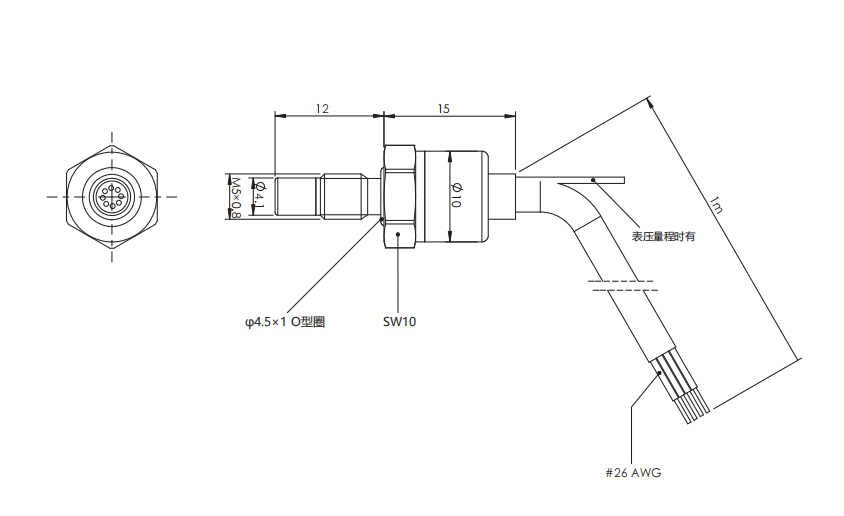

| 机械连接 | Mechanical connection | M5×0.8 | |||||||||
| 外壳材质 | Material | 不锈钢 | |||||||||
| 防护等级 | IP protection | IP67(直出线) | |||||||||
