| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 压力范围 | Measuring ranges | 0~1.0…1.6…3.0…10…20… 40…60…70… 80…90...100MPa | |||||||||
| 过载压力 | Overload pressures | 200%F.S 150%F.S 150%F.S | |||||||||
| 破坏压力 | Burst pressures | 500%F.S 300%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表压，绝压 | |||||||||
| 测量介质 | Measuring Media | 对不锈钢304和 316L不腐蚀的气、液体 | |||||||||
| 输出信号 | Output signal | 4~20mA 0~5VDC 0~10VDC Hz | |||||||||
| 工作电压 | Operating voltage | 24VDC(16~32VDC) | |||||||||
| 综合精度 | Accuracy | ±0.05%F.S ±0.1%F.S ±0.25%F.S | |||||||||
| 长期稳定性 | Long-term drift | ≤±0.1%F.S/ 年（典值） | |||||||||
| 工作温度范围 | Operating temperature range | -40~+100℃ | |||||||||
| 介质温度范围 | Fluid temperature range | -40~+120℃ | |||||||||
| 绝缘阻抗 | Insulation resistance | ≥200MΩ(200VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐冲击性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干扰 | EMC proof | IEC 61000-4-4 Ⅱ级 | |||||||||

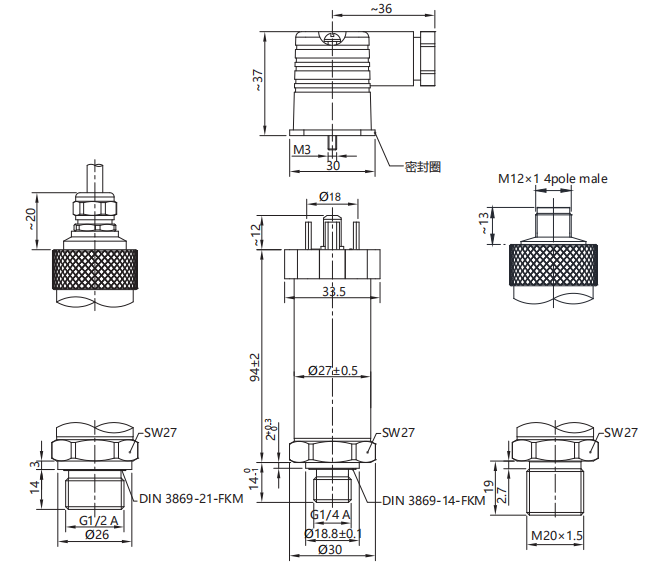

| 机械连接 | Mechanical connection | G1/4 A, G1/2 A, NPT1/4, NPT1/2, M20×1.5, M12×1 74°锥 | |||||||||

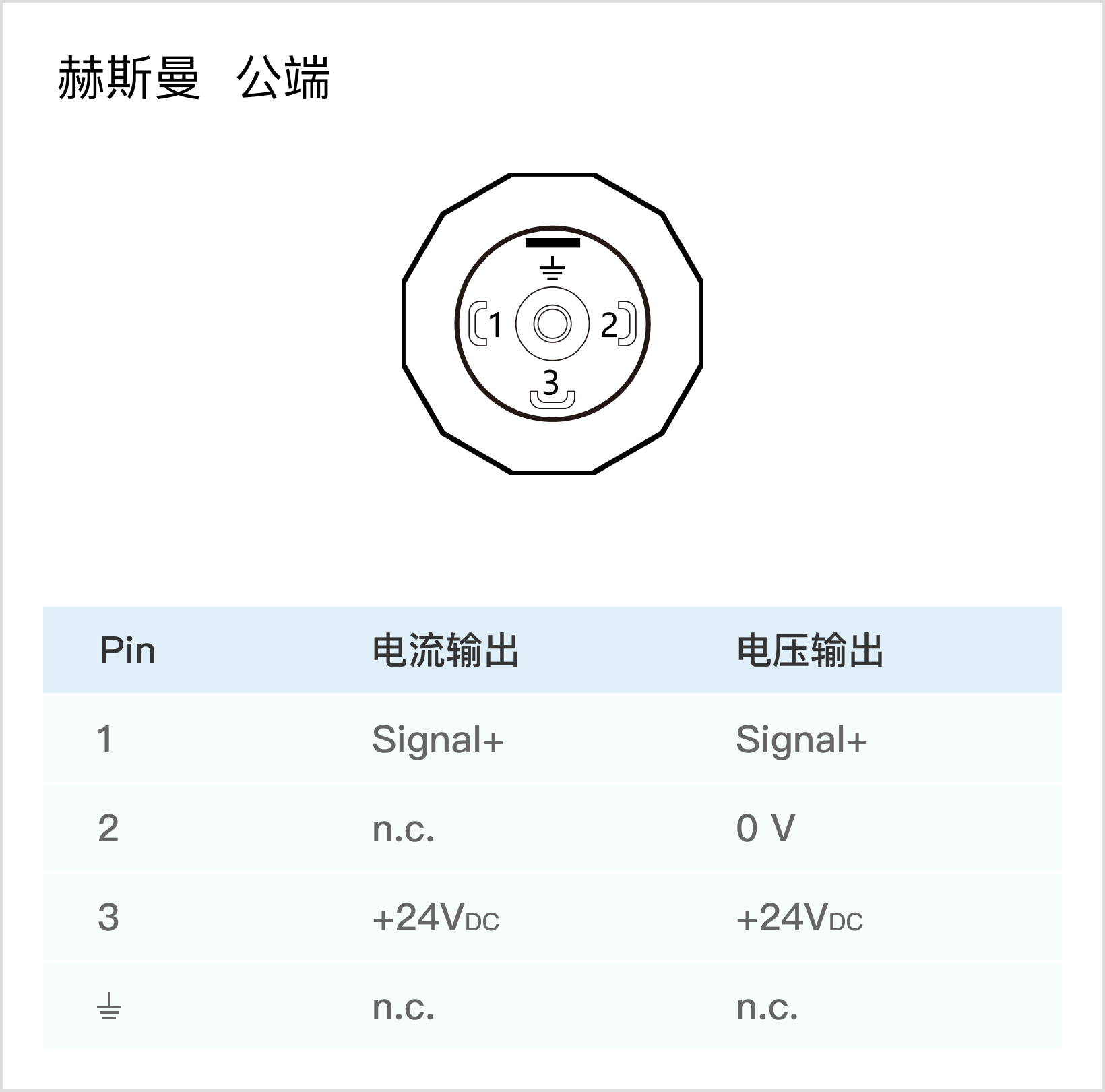

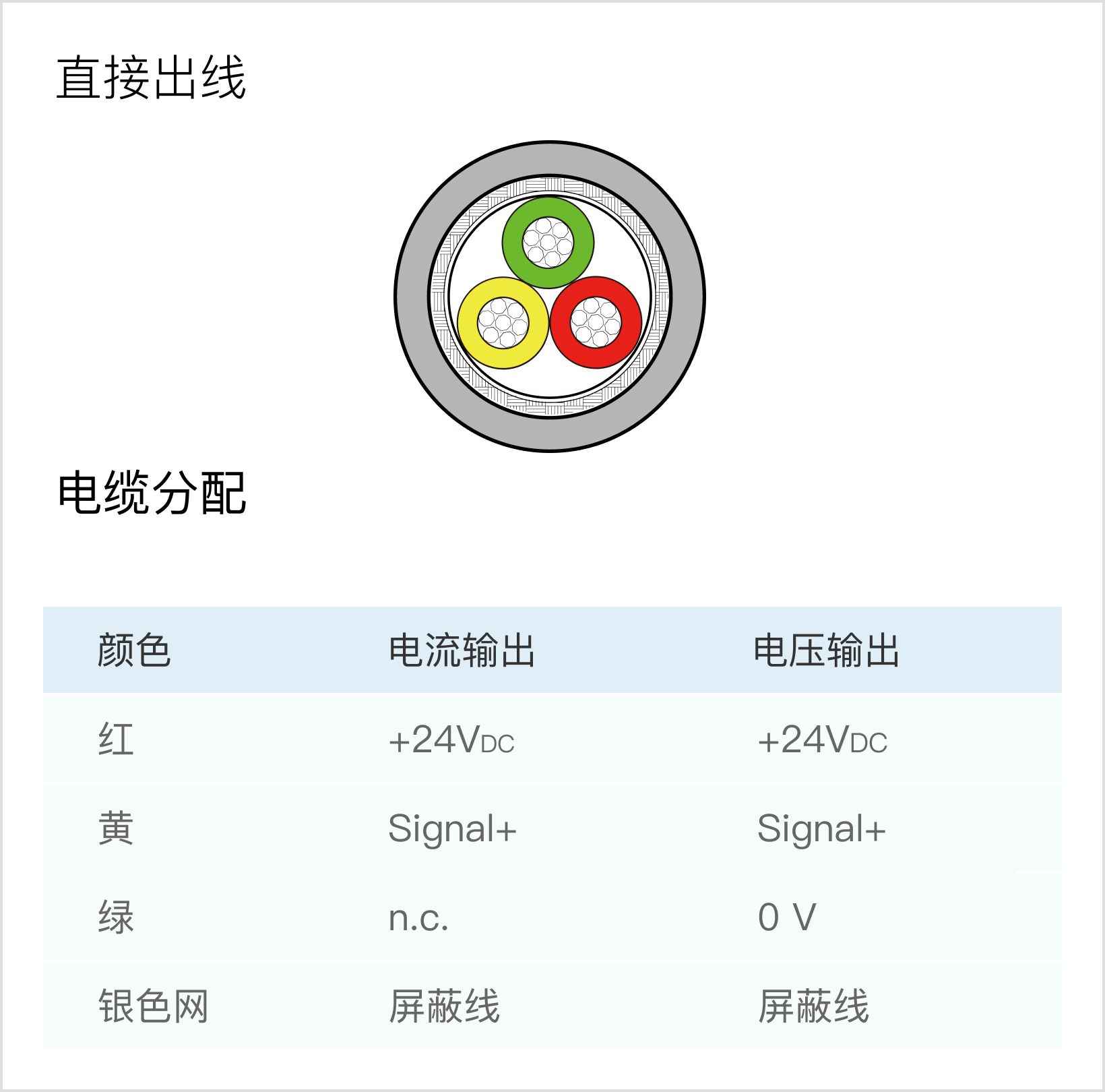

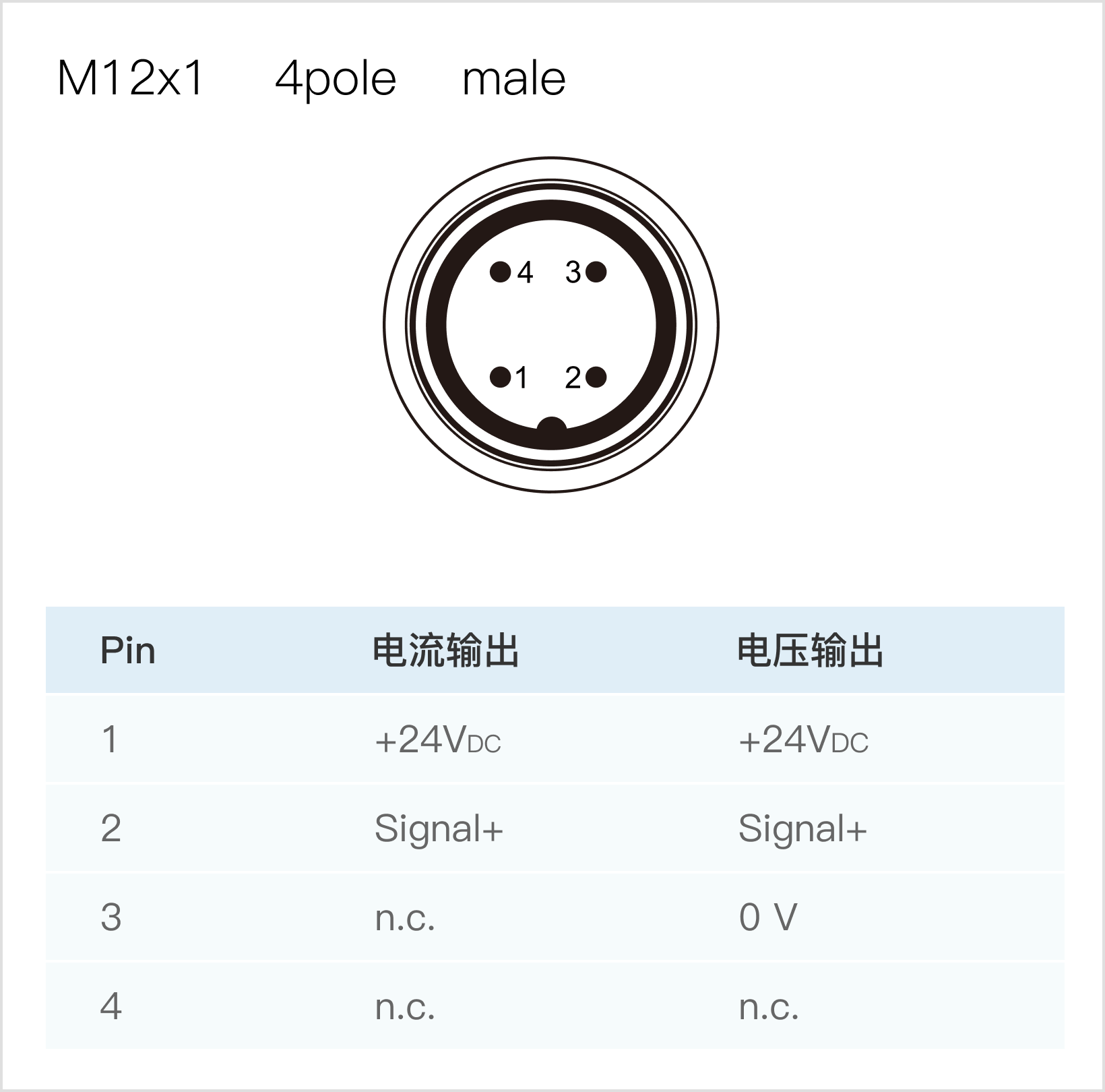

| 防护等级 | IP protection | IP65 (赫斯曼接插件) IP67 (M12×1连接器或直出线) | |||||||||
