| 参数 | Specifications | 技术指标 Technique data | |||||||||
| 量程范围 | Range | 1...5000N.m | |||||||||
| 输出信号 | Output signal | 0~5VDC 0~10VDC 4~20mA | |||||||||
| 精度等级 | Accuracy class | ± 0.2%F.S | |||||||||
| 最大转速 | Limit speed | < 12000 1/min | |||||||||
| 重复性 | Repeatability | ±0.02%F.S | |||||||||
| 温度灵敏度漂移 | Temperature sensitivity drift | ±0.1%F.S/10K | |||||||||
| 零点温度漂移 | Zero point temperature drift | ±0.1%F.S/10K | |||||||||
| 参考电压 | Reference excitation voltage | 15-28VDC | |||||||||
| 电流 | Current consumption | ≤60mA | |||||||||
| 使用温度 | Service temp.range | -10 ~60℃ | |||||||||
| 安全扭矩 | Service torque | 120%F.S | |||||||||
| 极限扭矩 | Limit torque | 150%F.S | |||||||||
| 破坏扭矩 | Ultimate torque | 200%F.S | |||||||||
| 最快响应时间 | Response time | 1ms | |||||||||
| 防护等级 | IP protection | IP50 | |||||||||

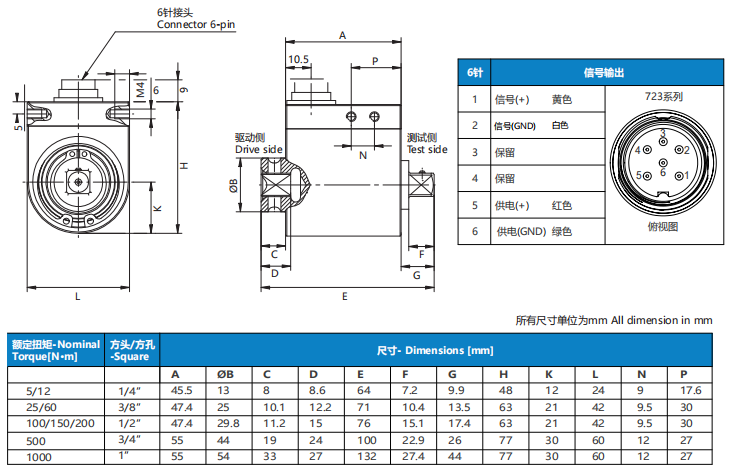

| 电气连接 | Electrical connection | Binder 6 针581系 | |||||||||
