| 参数 | Specifications | 技术指标 Technique data |
| 线性行程 | Stroke length | 50m | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm |
| 壳体长度 | Housing length | 50+22.5 | 100+22.5 | 150+22.5 | 220+22. | 300+22. | 400+22.5 | 500+22.5 |
| 精度 | Nonlinearity | ± 2%F.S |
| 输出信号 | Output signal | 1~4VDC，3 conductor/RS485(ModBus-RTU)，4conductor |
| 工作电压 | Operating voltage | 5VDC，3 conductor (Max:32VDC) |
| 绝缘阻抗 | Insulation resistance | ＞ 100MΩ/500VDC |
| 消耗电流 | Current consumption | ≤15mA |
| 工作温度 | Operating temperature | -30~120℃ |
| 测量介质 | Measuring Media | 指定型号油品（默认YH-10航空液压油）或根据客户要求油品标定 |
| 抗振性能 | Vibration proof | IEC 60068-2-6(5…2000Hz，20g) |
| 耐冲击性 | Strike proof | IEC 60068-2-7(50g，11ms) |
| 抗干扰 | EMC proof | IEC 61000-6-2/3/4 |

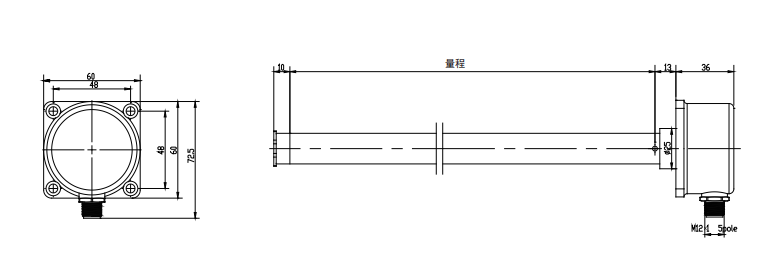

| 机械连接 | Mechanical connection | 法兰式如上图 |
| 外壳材质 | Material | 铝合金 |
| 防护等级 | Ip protection | IP65 |
